FLEXPLORER

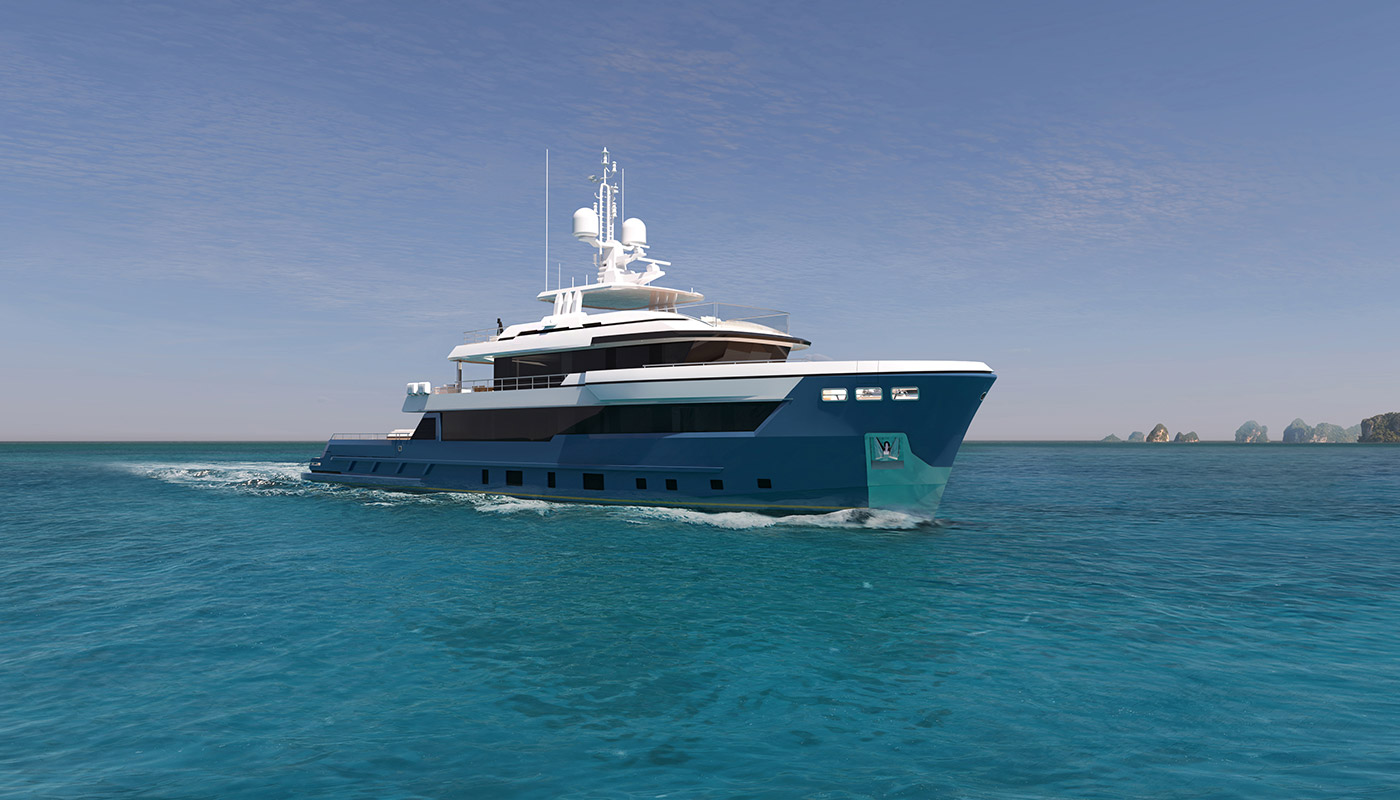

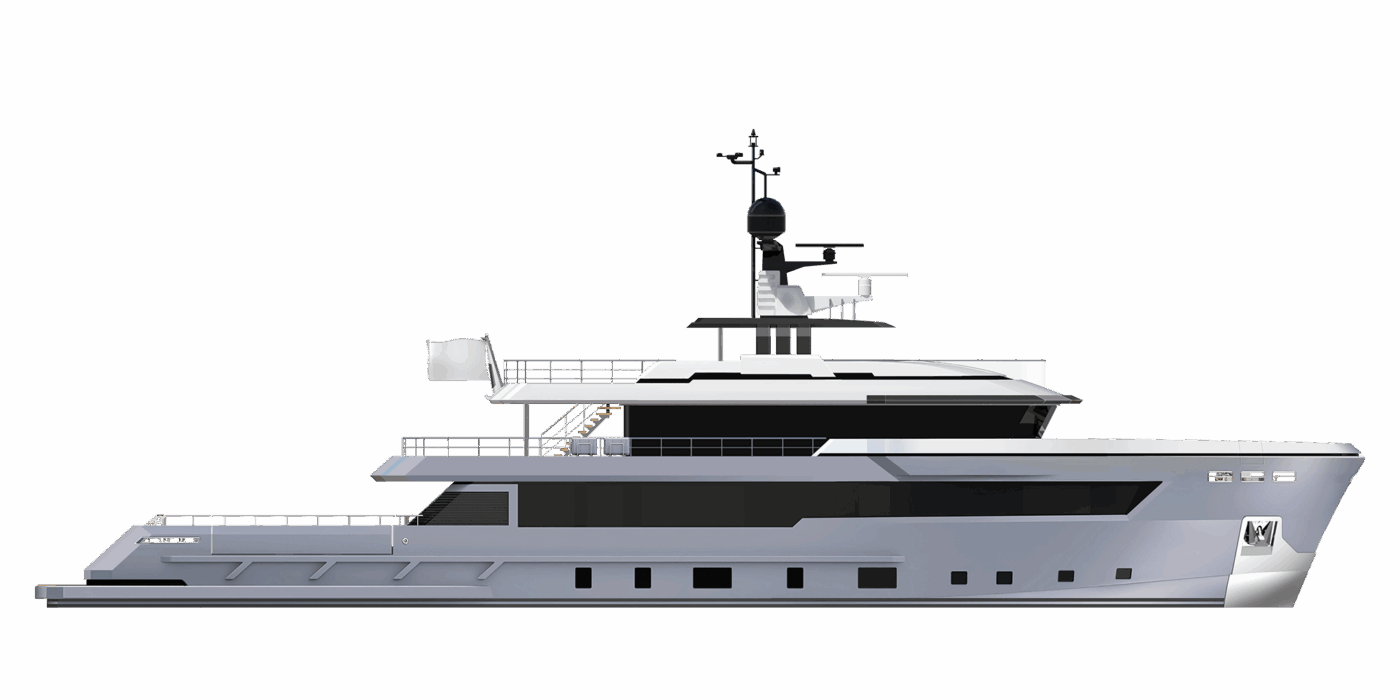

The essence of the Flexplorer line lies in it flexibility and adaptability. The Flexplorer 146 three- deck model embodies this concept by preserving the core characteristics while introducing a more streamlined appearance. It can be customized to suit each Owner’s preferences and can accommodate either an A-frame crane or a concealed crane seamlessly integrated into the sun deck overhang.

Specifications

Length overall

44,50 m

146 ft

Waterline length

41,60 m

136.5 ft

Max beam

8,60 m

28.2 ft

Depth, amidship

4,70 m

15.4 ft

Draught, full load under the keel

2,62 m

8.60 ft

Displacement, full load

439 t

Classification

C ✠ HULL • MACH Y

Exterior design

Hydro Tec

Diesel oil, including UREA tank

65˙100 lt

17˙198 gal

Urea

3˙550 lt

938 gal

Fresh water

15˙950 lt

4˙214 gal

Black water

2˙690 lt

711 gal

Grey water

8˙200 lt

2˙166 gal

Clean oil / Dirty oil

1040 / 1040 lt

275 / 275 gal

Bilge

2˙690 lt

711 gal

Engines

2xCATERPILLAR C32 ACERT 2x746 kW @1800 rpm IMO TIER III

Gearbox

2 x REINTJES 542L rapporto 3,955:1

Generator

2x99 kW

Bow thruster / Stern thruster

85 kW Electrical

Stabilizer fins

2 pairs, Electrical, Zero Speed

Maximum speed

14 Knots

Cruise speed

10 Knots

Range

5˙000 nm @ 10 Knots

Passengers

10 (+2 Pullman Bed) / 5 Cabins

Crew

9 / 5 Cabins

DOWNLOAD SHORT SPECIFICATION

General Plan

SUN DECK
UPPER DECK
MAIN DECK
LOWER DECK
DOWNLOAD GENERAL PLAN
