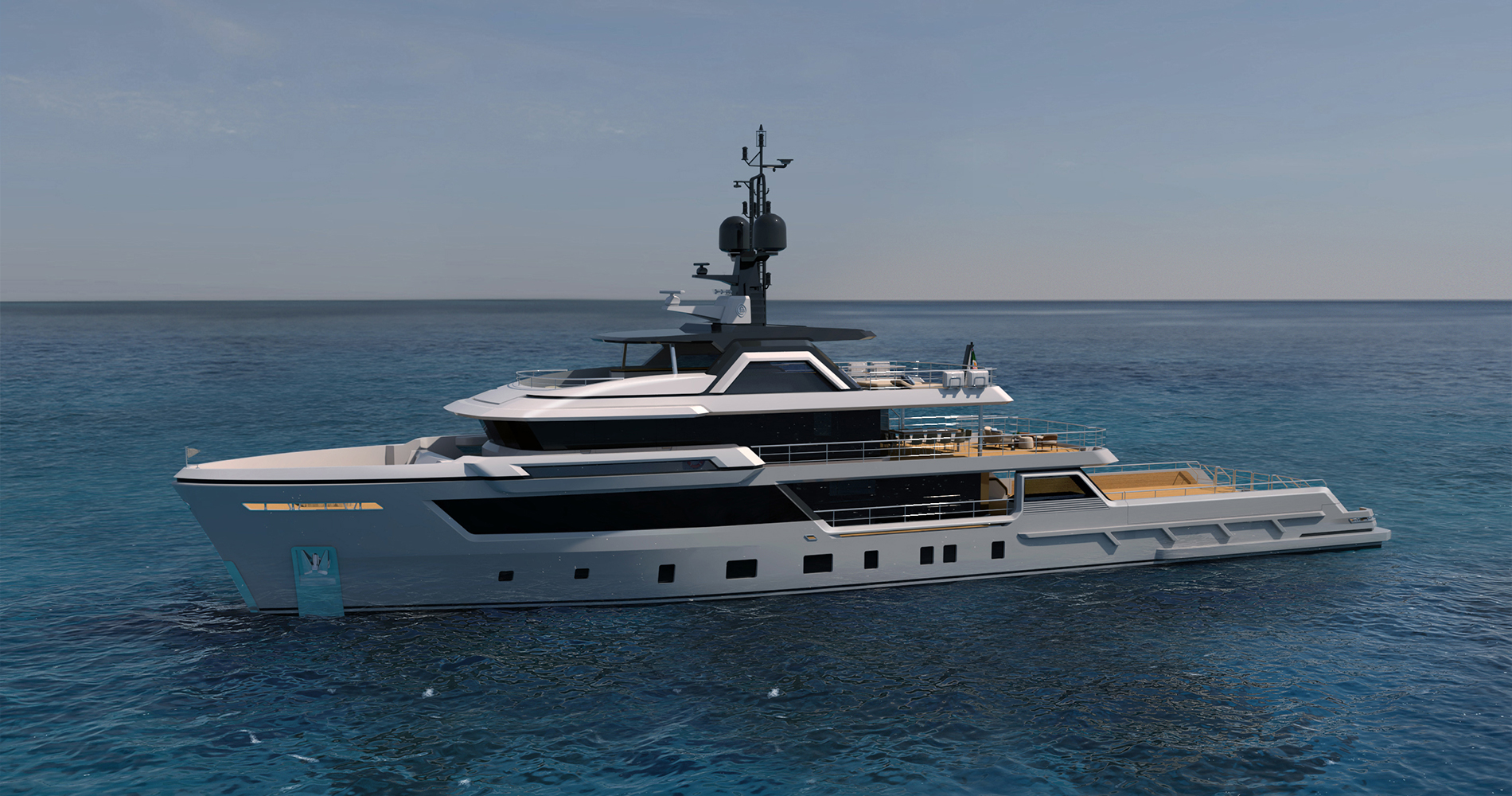

FLEXPLORER

The Flexplorer 165 achieves an ideal harmony between indoor and outdoor areas with the sprawling Main deck aft as its focal point. This area exemplifies the concept of flexibility, seamlessly transitioning from a utilitarian space for storing a large tender during extended passages to an extremely spacious and versatile outdoor entertainment area where Owners and guests can enjoy life en plein air. The area can be further enlarged thanks to collapsible bulwarks. A powerful A-frame crane perfectly integrates with the deck, remaining flush when not in operation.

Specifications

Length overall

49,90 m

165 ft

Max beam

9,00 m

29.5 ft

Depth, amidship

4,25 m

14 ft

Draught, full load under the keel

2,30 m

7.5 ft

Gross tonnage

<500 GT

Classification

C ✠ HULL • MACH Y

Exterior design

Hydro Tec

Diesel oil

57˙000 lt

15˙057 gal

Urea

8˙500 lt

2˙245 gal

Fresh water

8˙500 lt

2˙245 gal

Black water

2˙000 lt

528 gal

Grey water

5˙000 lt

1˙320 gal

Clean oil / Dirty oil

400 / 400 lt

105 / 105 gal

Bilge

1˙000 lt

264 gal

Engines

2x Caterpillar C32 ACERT, 970kW @ 1800rpm, rating C

Generators

2x CAT 7.1 or similar, 118kW @400V, 50Hz

Bow thruster

1x 110kW, Electrical

Stabilizer fins

2 pair of CMC electric fins

Maximum speed

15 Knots

Range

4˙800 nm @ 10 Knots

Passengers

12 p / 5 Cabins

Crew

10 / 6 Cabins

DOWNLOAD SHORT SPECIFICATION

General Plan

SUN DECK
UPPER DECK
MAIN DECK
LOWER DECK
DOWNLOAD GENERAL PLAN
