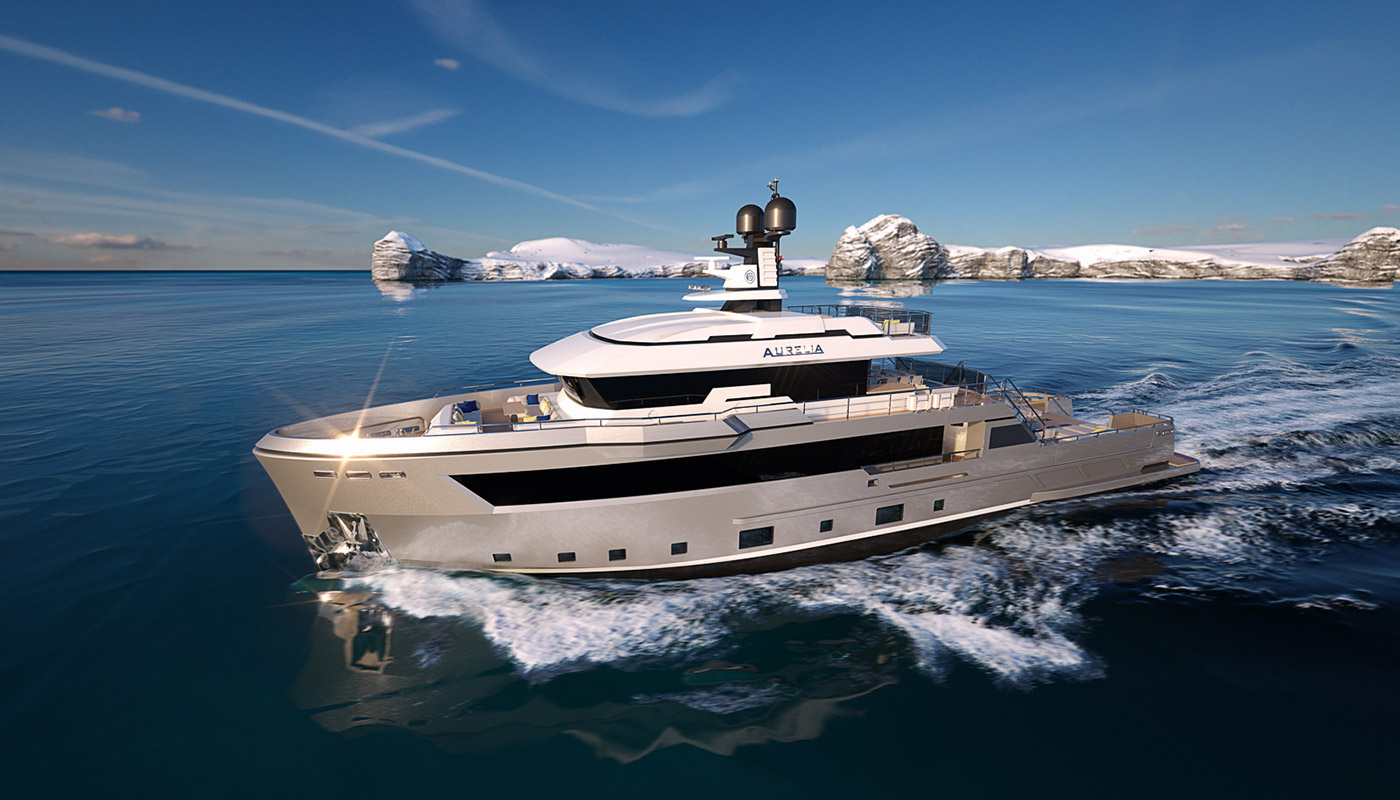

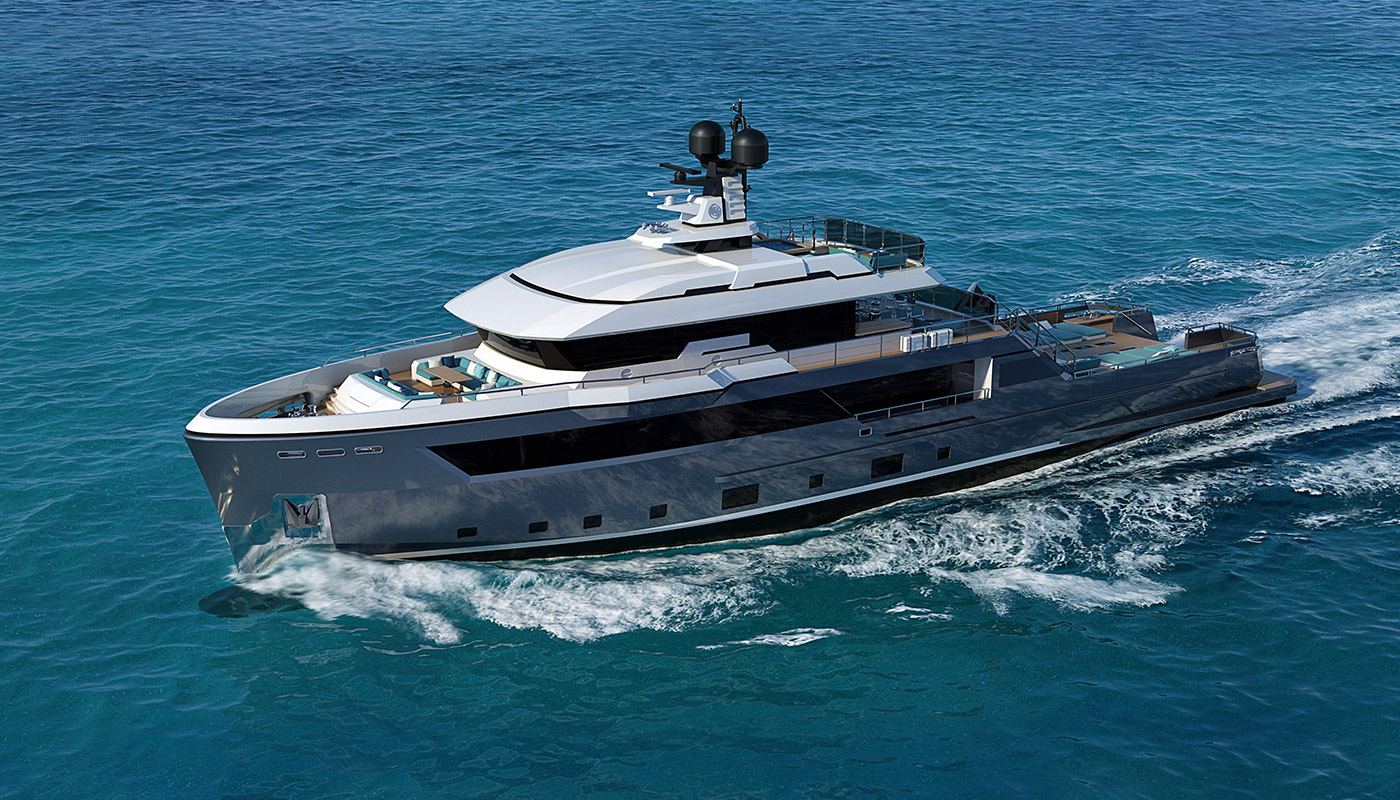

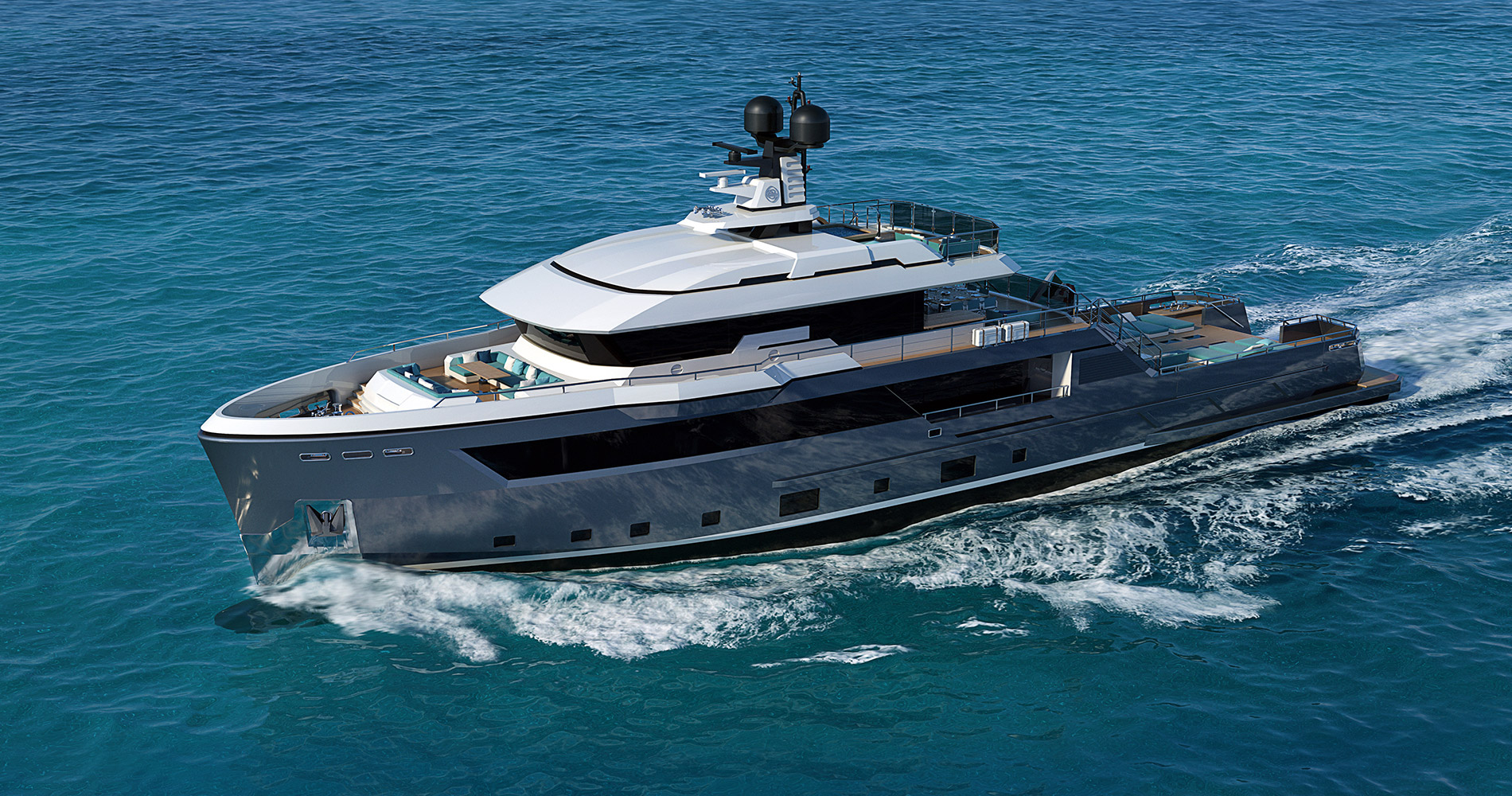

FLEXPLORER

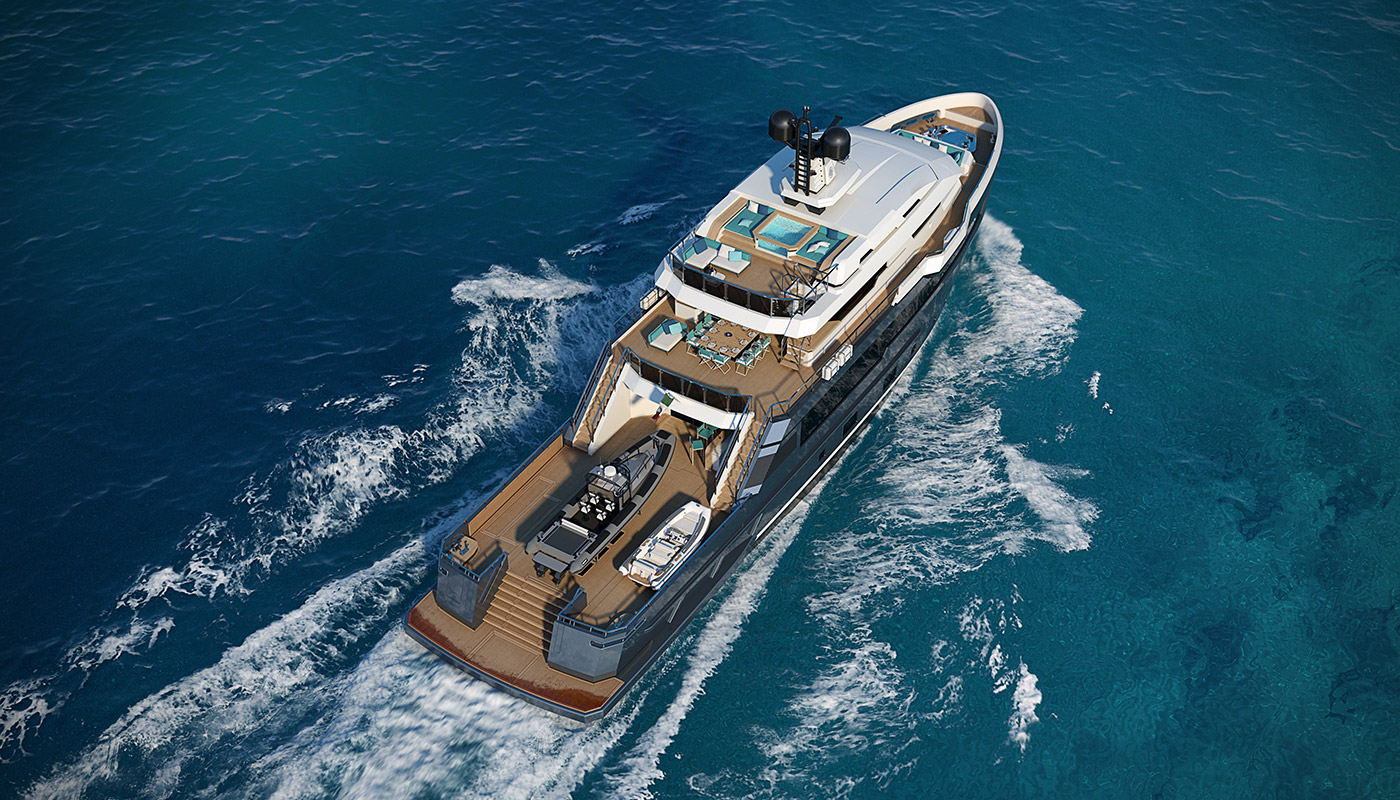

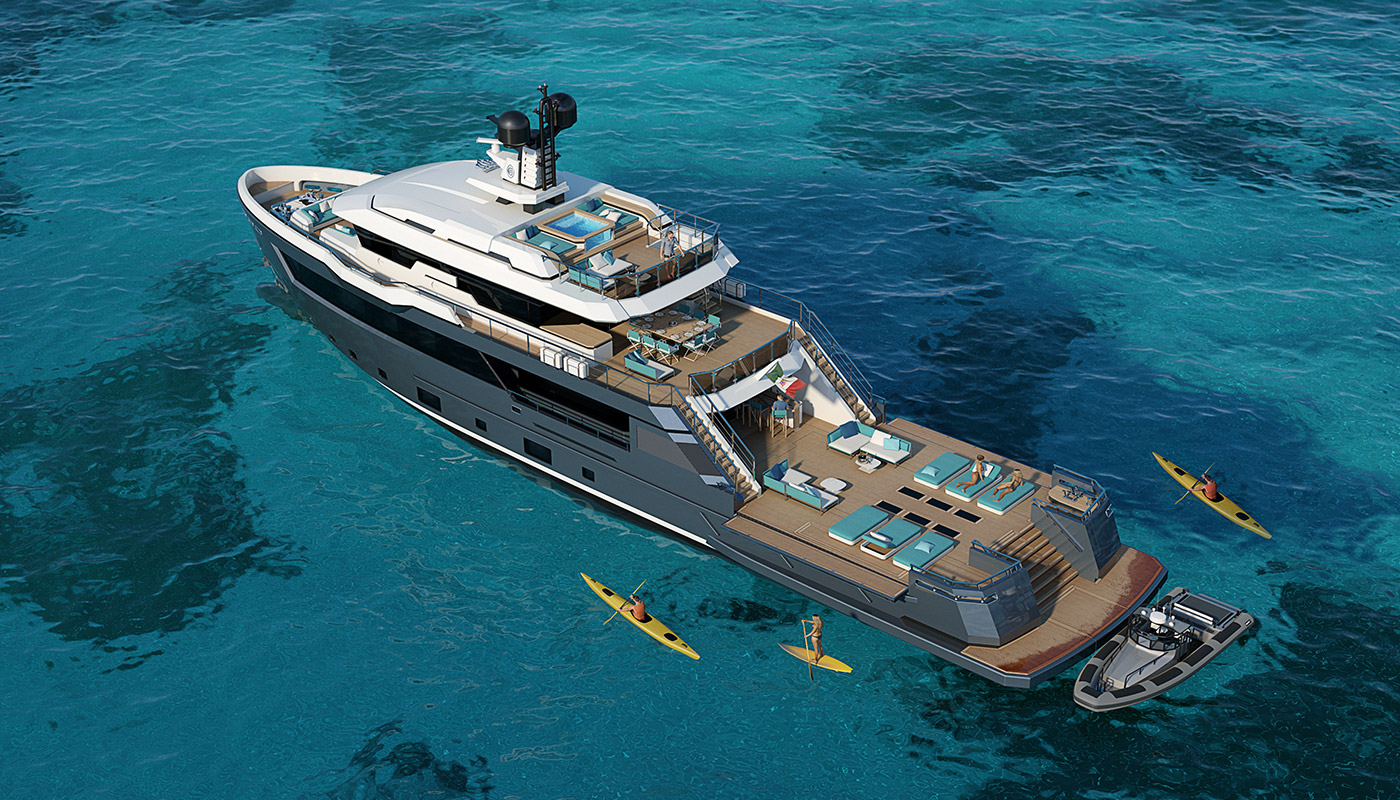

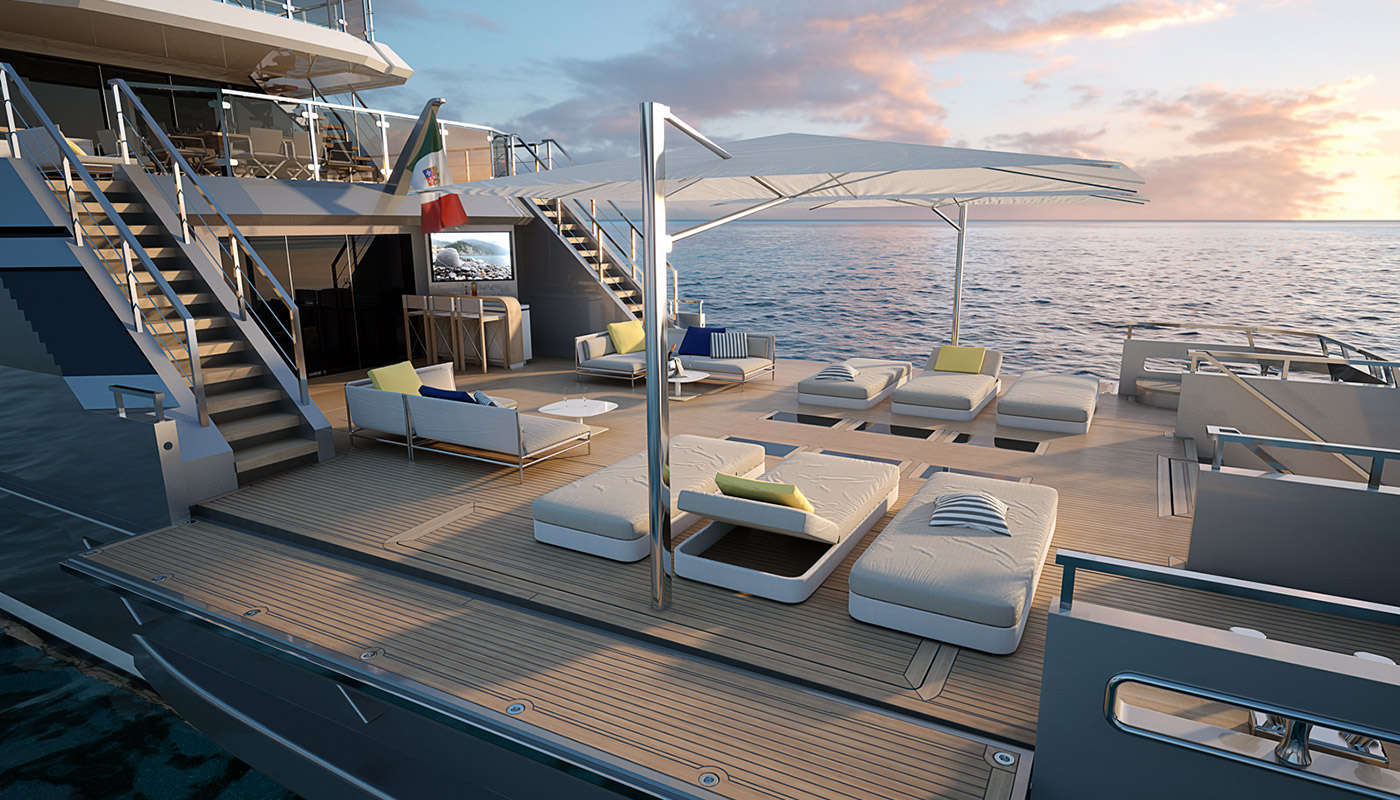

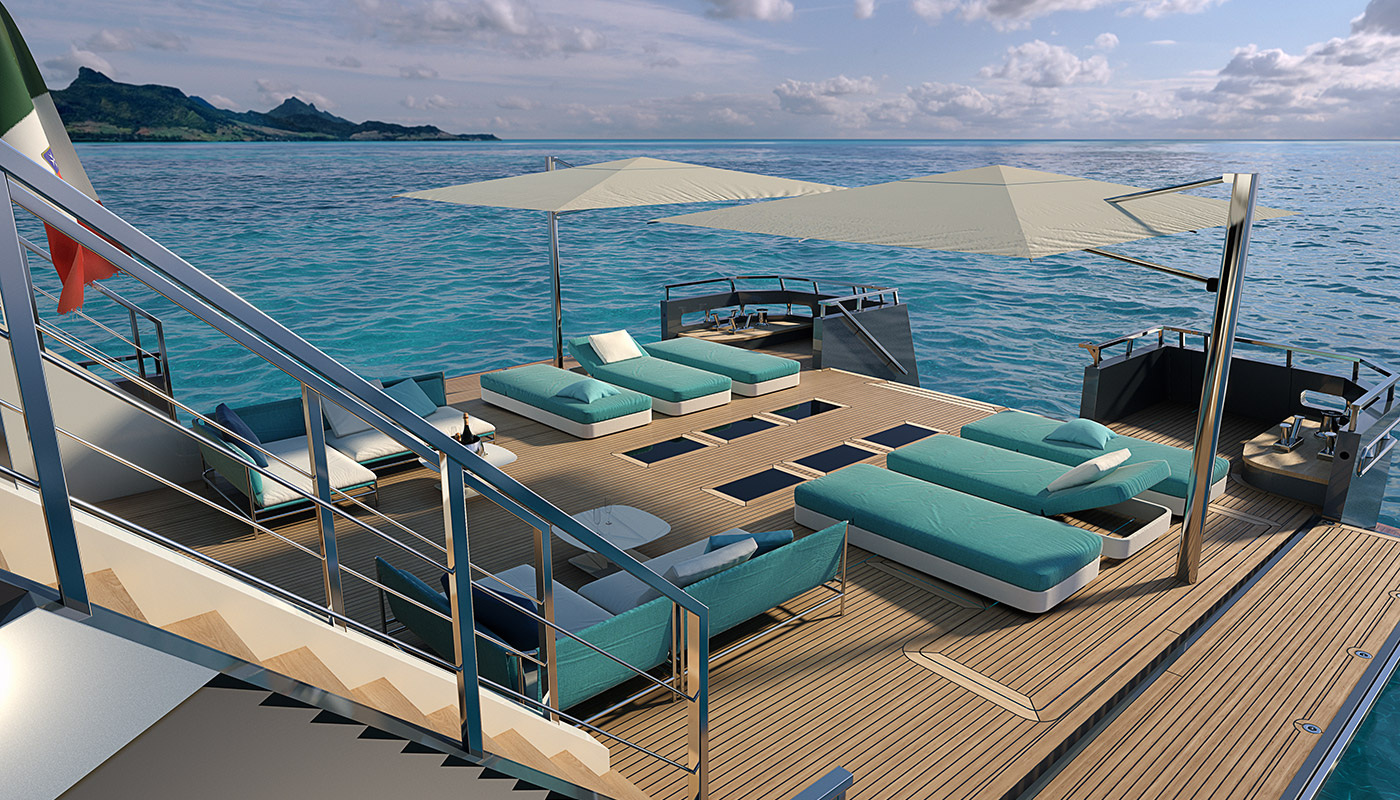

The Flexplorer 132 achieves an ideal harmony between indoor and outdoor areas with the sprawling Main deck aft as its focal point. This area exemplifies the concept of flexibility, seamlessly transitioning from a utilitarian space for storing a large tender during extended passages to an extremely spacious and versatile outdoor entertainment area where Owners and guests can enjoy life en plein air. The area can be further enlarged thanks to collapsible bulwarks. A powerful A-frame crane perfectly integrates with the deck, remaining flush when not in operation.

Specifications

Length overall

40,41 m

132.6 ft

Waterline length

38,76 m

127.1 ft

Max beam

8,60 m

28.2 ft

Depth, amidship

4,70 m

15.40 ft

Draught, full load under the keel

2,60 m

8.53 ft

Displacement, full load

392 t

386 long ton

Classification

C ✠ HULL • MACH Y

Exterior design

Hydro Tec

Diesel oil

61˙000 lt

16˙114 gal

Urea

2˙000 lt

528 gal

Fresh water

9˙900 lt

2˙377 gal

Black water

2˙500 lt

660 gal

Grey water

8˙000 lt

2˙113 gal

Clean oil / Dirty oil

330 / 330 lt

87 / 87 gal

Bilge

1˙500 lt

396 gal

Engines

2x746 kW @1600-1800 rpm (IMO TIER III)

Gearbox

2 x REINTJES WAF 464 gear ratio 4.000:1

Generator

2x80 kW

Bow thruster / Stern thruster

85 kW Electrical

Stabilizer fins

Electrical, Zero Speed

Maximum speed

14 Knots

Cruise speed

10 Knots

Range

5˙000 nm @ 10 Knots

Passengers

10 (+2 Pullman Bed) / 5 Cabins

Crew

7 / 4 Cabins

DOWNLOAD SHORT SPECIFICATION

General Plan

SUN DECK
UPPER DECK
MAIN DECK
LOWER DECK
DOWNLOAD GENERAL PLAN
