DEEP BLUE 105'

The Deep Blue 105, a genuine explorer yacht in a compact package, mirrors qualities and comfort of the larger models of the line it belongs to. Crafted for extensive navigation, this explorer yacht offers remarkable indoor and outdoor living spaces, ensuring spacious accommodations for Owners, guests, and crew alike. Large openable doors ensure continuity between interior and exterior areas on both the Main and Upper deck creating bright and airy environments.

Specifications

Length overall

31.80 m

105,04 ft

Waterline length

30.00 m

98,05 ft

Max beam

7.55 (8.20) m

24,10 (26,11) ft

Draught, full load under the keel

2,45 m

8,00 ft

Displacement, full load

250 t

Classification

RINA C ✠ HULL • MACH Ych, Short Range Compilance with Malta Code

Exterior design

Horacio Bozzo

Diesel oil, including UREA tank

40˙000 lt

10˙567 gal

Fresh water

6˙000 lt

1˙585 gal

Gray and black water

3˙200 lt

845 gal

Engines

2 x CATERPILLAR C18 ACERT / 500 kW @ 2100 rpm

Generator

2 x KOHLER / 55 ekW

Maximum speed

13 Knots at max power and half load displacement

Cruise speed

11.5 Knots

Range

5000 nm at 9.0 Knots

Passengers

10 + 2 / 5 Cabins

Crew

7 / 4 Cabins

DOWNLOAD SHORT SPECIFICATION

General Plan

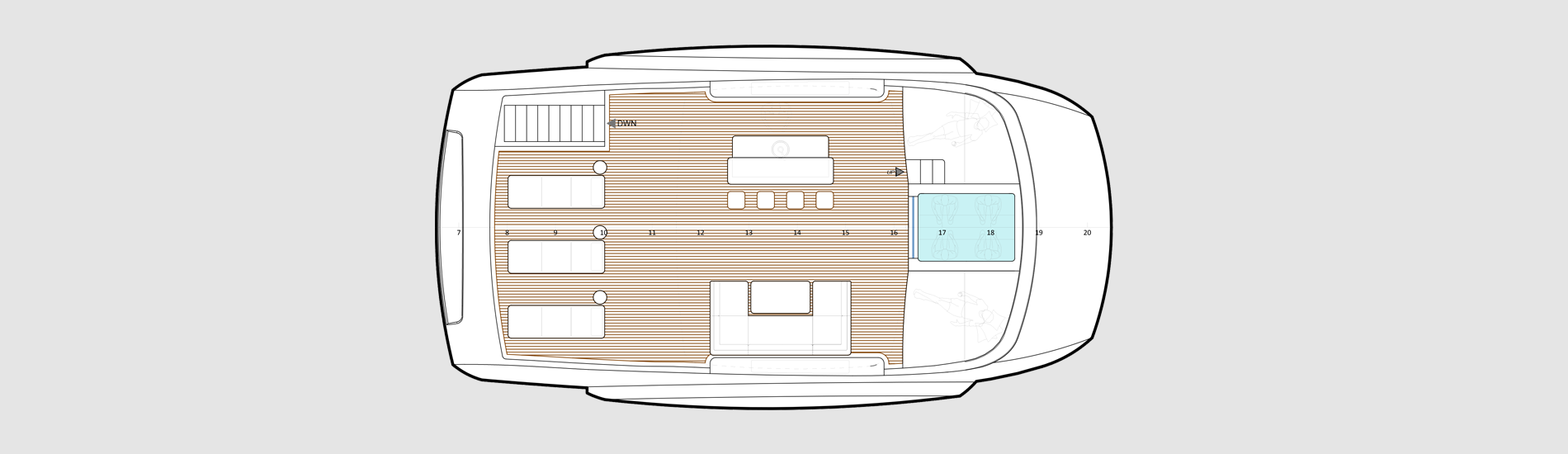

SUN DECK
UPPER DECK

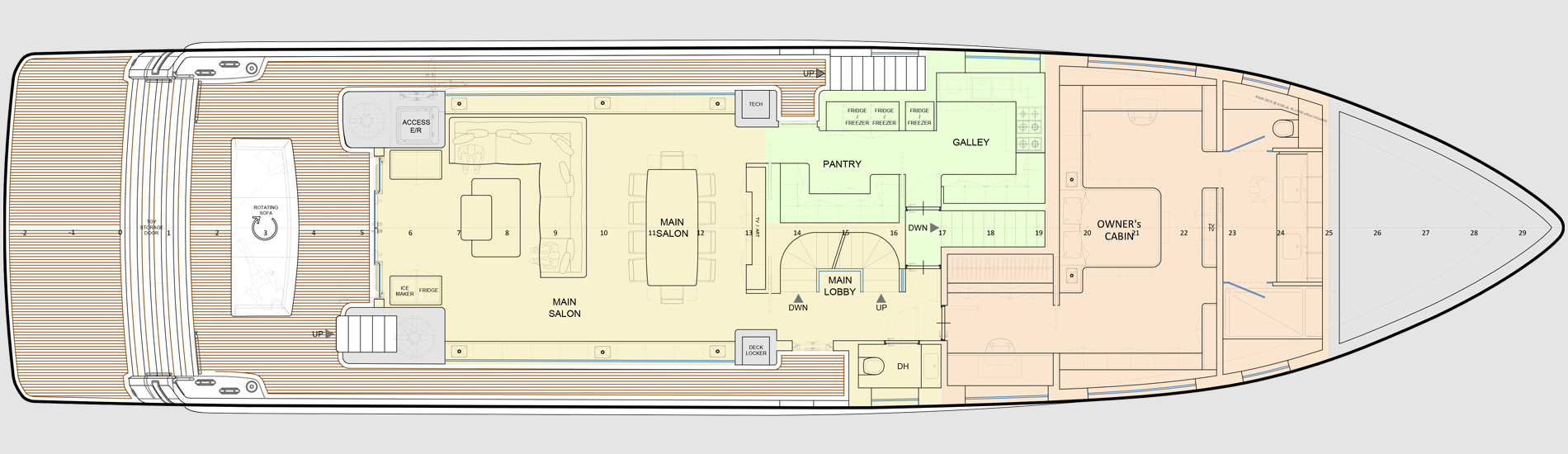

MAIN DECK
LOWER DECK
DOWNLOAD GENERAL PLAN
