Essential and lightweight at the same time,
strong enough to sail the oceans.

EXPLORE NOW

TECHNICAL
SPECIFICATION

A Nauta Air boat is essential and lightweight at the same time, strong enough to sail the oceans. As powerful as a hurricane but as light and fresh as a summer breeze.

DELIVERY

Nauta Air 130' (40.00/ X 8.40 MT)
26 months for delivery

DIMENSIONS

Length overall
40 mt / 131.20 ft
Waterline length
37,40 mt / 122.70 ft
Max beam
8,20 mt / 26.90 ft
Depth amidship
4,80 mt / 15.75 ft
Draught full load
2,50 mt / 8.20 ft
Displacement full load
380 t / 375 long ton

ACCOMODATION

Passengers
10 persons / 5 cabins
CREW
7 persons / 4 cabins

CAPACITY

Diesel oil
70˙000 lt / 18˙490 gl
Fresh water
8˙000 lt / 2˙115 gl
Black water
1˙500 lt / 395 gl
Grey water
2˙500 lt / 660 gl
Clean oil
300 lt / 80 gl
Dirty oil
300 lt / 80 gl
Bilge
1˙100 lt / 290 gl

PROPULSION

Engines
2x 448 kW CAT C18 @ 1˙800 rpm
Gearbox
2x gearbox ZF i=4:1
Generator
2x70 kW
Bow thruster
electric 70 kW
Stabilizer fins
electrical, zero speed

PERFORMANCE

Maximum speed
13 knots
Cruise speed
11 knots
Range
5˙000 nm @ 10 knots

DOWNLOAD

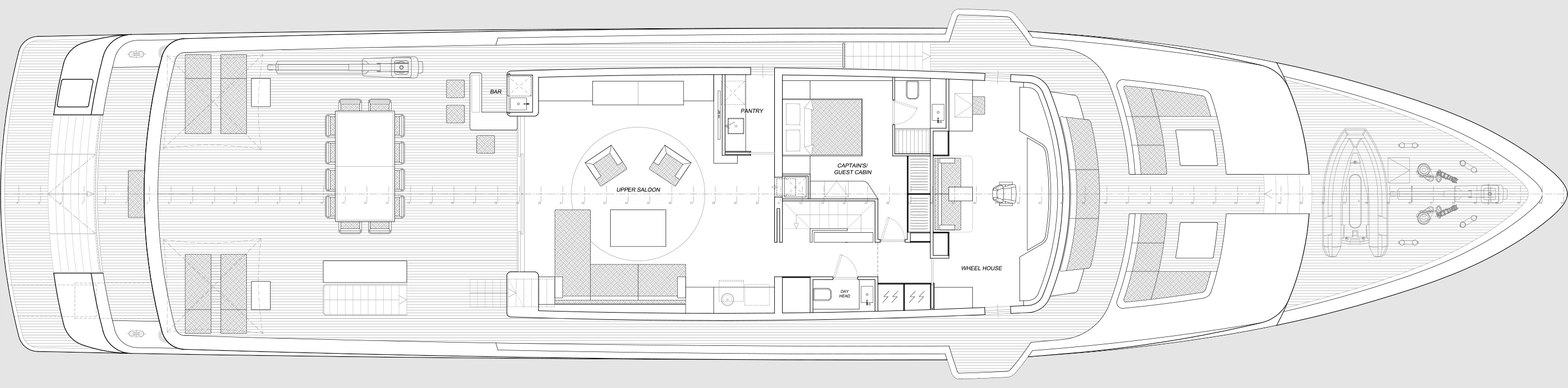

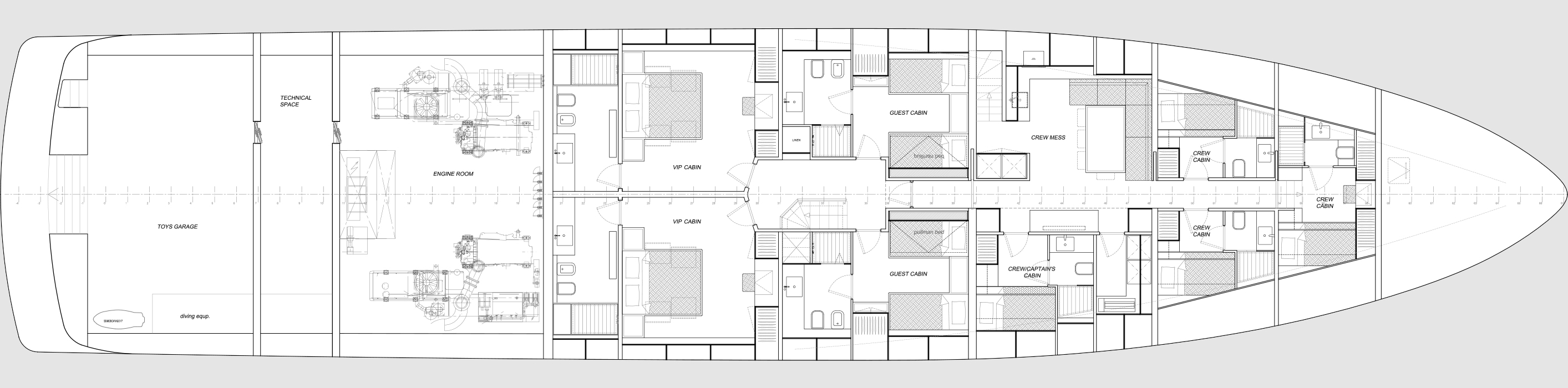

ARRANGEMENT
PLAN

The Nauta Air range follows a new proportion and a different equilibrium between interior and exterior architectural spaces, characterized by a direct eye contact among them, due to large windows and it allows to enjoy the yacht without losing contact with the landscapes that sourrond it.

link to plan
SUN DECK
link to plan
UPPER DECK
link to plan
MAIN DECK
link to plan
LOWER DECK
