ESSENTIAL AND LIGHTWEIGHT AT THE SAME TIME,
STRONG ENOUGH TO SAIL THE OCEANS.

EXPLORE NOW

TECHNICAL
SPECIFICATION

A Nauta Air boat is essential and lightweight at the same time, strong enough to sail the oceans. As powerful as a hurricane but as light and fresh as a summer breeze.

DELIVERY

Nauta Air 111' (33.83 X 7.80 MT)
22 months for delivery

DIMENSIONS

Length OVERALL
33,83 mt / 111 ft
WATERLINE LENGTH
31,34 mt / 102.8 ft
MAX BEAM
7,80 mt / 25.59 ft
DEPTH AMIDSHIP
4,15 mt / 13.61 ft
DRAUGHT FULL LOAD
2,35 mt / 7.70 ft
DISPLACEMENT FULL LOAD
315 t / 310 long ton

ACCOMODATION

PASSENGERS
12 person / 5 double cabins + 2 pullman Bed
CREW
7 person / 3 double cabins + 1 single cabin

CAPACITY

DIESEL OIL
46˙700 lt / 12˙337 gl
FRESH WATER
10˙500 lt / 2˙640 gl
BLACK WATER
2˙750 lt / 725 gl
GREY WATER
2˙750 lt / 725 gl
CLEAN OIL
360 lt / 95 gl
DIRTY OIL
360 lt / 95 gl
BILGE
1˙200 lt / 317 gl
BALLAST TANK
3˙750 lt / 990 gl

PROPULSION

ENGINES
2xCaterpillar C18 ACERT (533kW @1˙800-2˙100rpm) C RATING
GEARBOX
2x ZF W650 4:1 free standing
GENERATOR
2x65 kW kohler
Elica di manovra di prua/poppa
65 kW bow thr. / 30 kW stern thr.
STABILIZER FINS
Electrical, zero speed

PERFORMANCE

MAXIMUM SPEED
13 knots
CRUISE SPEED
12 knots
RANGE
5˙700 nm @ 9 knots

DOWNLOAD

ARRANGEMENT
PLAN

The Nauta Air range follows a new proportion and a different equilibrium between interior and exterior architectural spaces, characterized by a direct eye contact among them, due to large windows and it allows to enjoy the yacht without losing contact with the landscapes that sourrond it.

link to plan

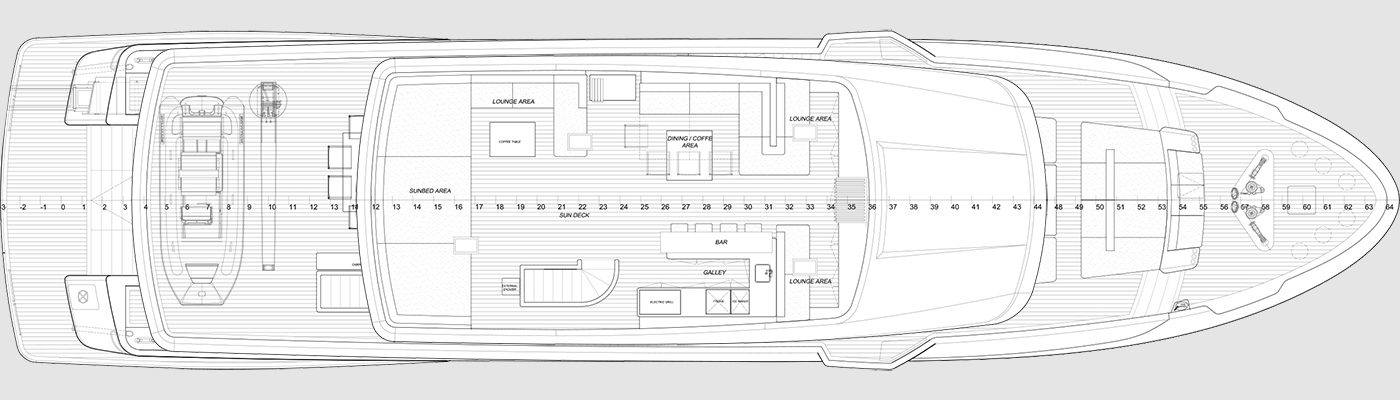

SUN DECK
link to plan

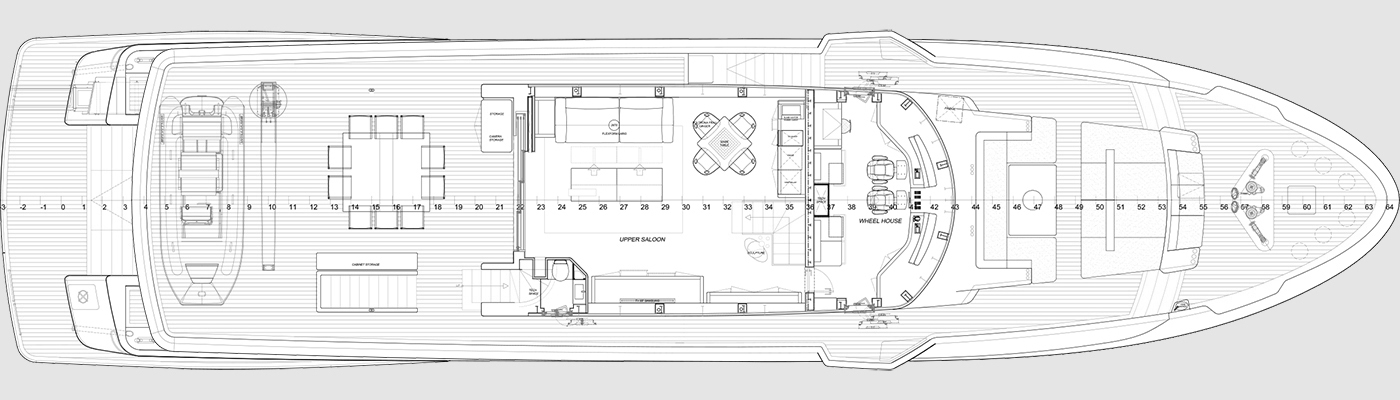

UPPER DECK
link to plan

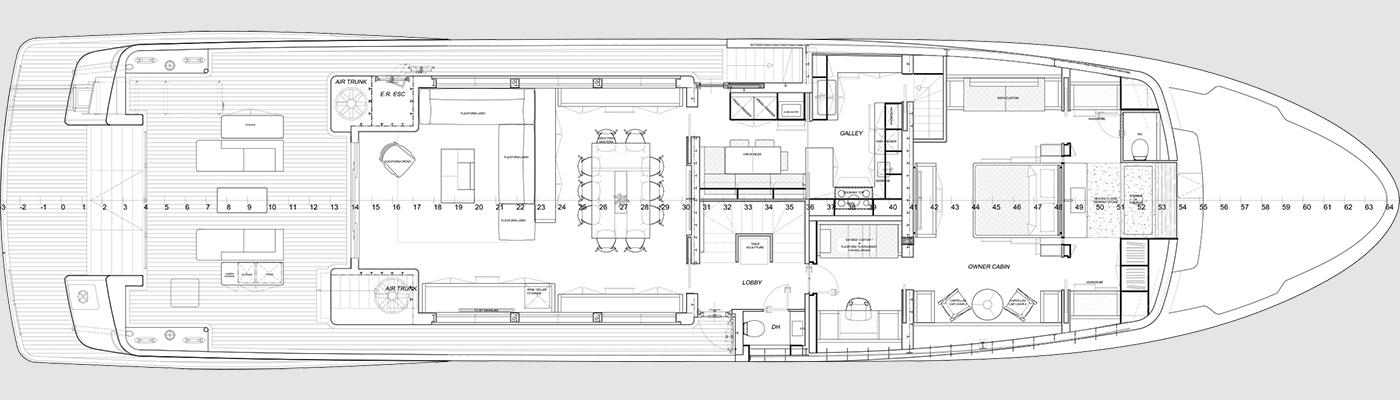

MAIN DECK
link to plan

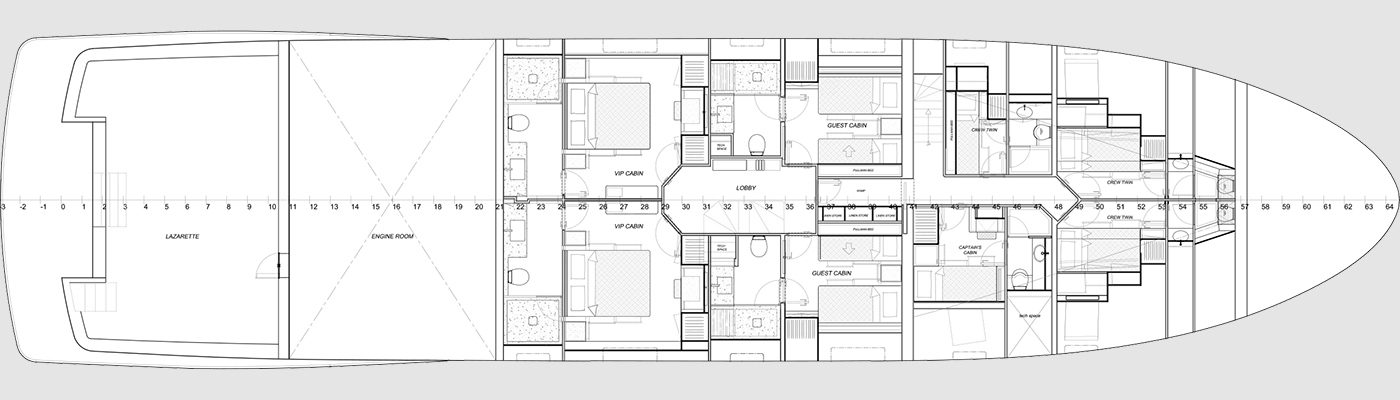

LOWER DECK
