Essential and lightweight at the same time,
strong enough to sail the oceans.

EXPLORE NOW

TECHNICAL
SPECIFICATION

A Nauta Air boat is essential and lightweight at the same time, strong enough to sail the oceans. As powerful as a hurricane but as light and fresh as a summer breeze.

DELIVERY

Nauta Air 108' (33.40 x 7.50 MT)
22 months for delivery

DIMENSIONS

Lenght overall
33,40 mt / 109.58 ft
Waterline length
30,00 mt / 98.42 ft
Max beam
7,50 mt / 24.60 ft
Depth amidship
4,15 mt / 13.61 ft
Draught full load
2,30 mt / 7.54 ft
Displacement full load
280 t / 250 long ton

ACCOMODATION

Passengers
10 persons / 5 double cabins +2 pulman bed
CREW
7 persons / 4 cabins

CAPACITY

Diesel oil
48˙000 lt / 12˙676 gl
Fresh water
6˙000 lt / 1˙584 gl
Black water
1˙250 lt / 330 gl
Grey water
2˙800 lt / 739 gl
Clean oil
400 lt / 105 gl
Dirty oil
400 lt / 105 gl
Bilge
1˙250 lt / 330 gl
Ballast tank
21.350 lt / 5˙640 gl

PROPULSION

Engines
2x CAT C18 ACERT EPA tier 3 (533kW @1˙800-2˙100rpm) C RATING
Gearbox
2x ZF W650 4:1 free standing
Generator
2x55 kW kohler
Bow thruster
electric 52 kW
Stabilizer fins
electrical, zero speed

PERFORMANCE

Maximum speed
13,5 knots
Cruise speed
12 knots
Range
5˙500 nm @ 9 knots

DOWNLOAD

ARRANGEMENT
PLAN

The Nauta Air range follows a new proportion and a different equilibrium between interior and exterior architectural spaces, characterized by a direct eye contact among them, due to large windows and it allows to enjoy the yacht without losing contact with the landscapes that sourrond it.

link to plan

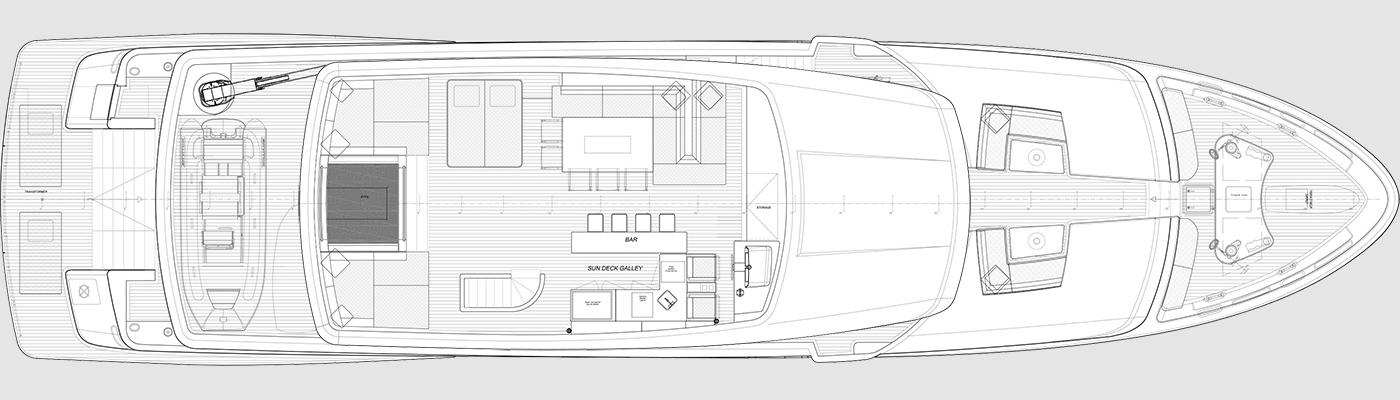

SUN DECK
link to plan

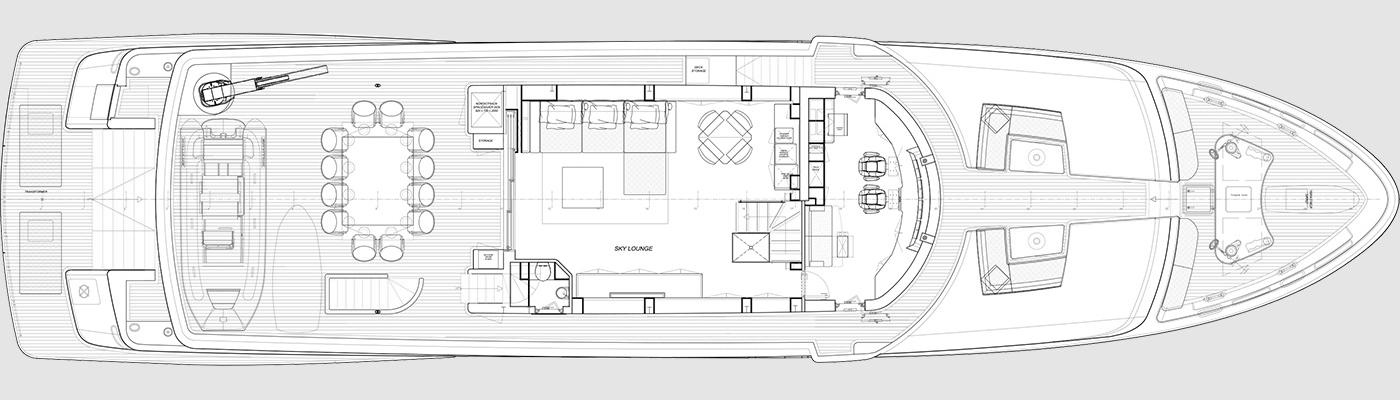

UPPER DECK
link to plan
MAIN DECK
link to plan

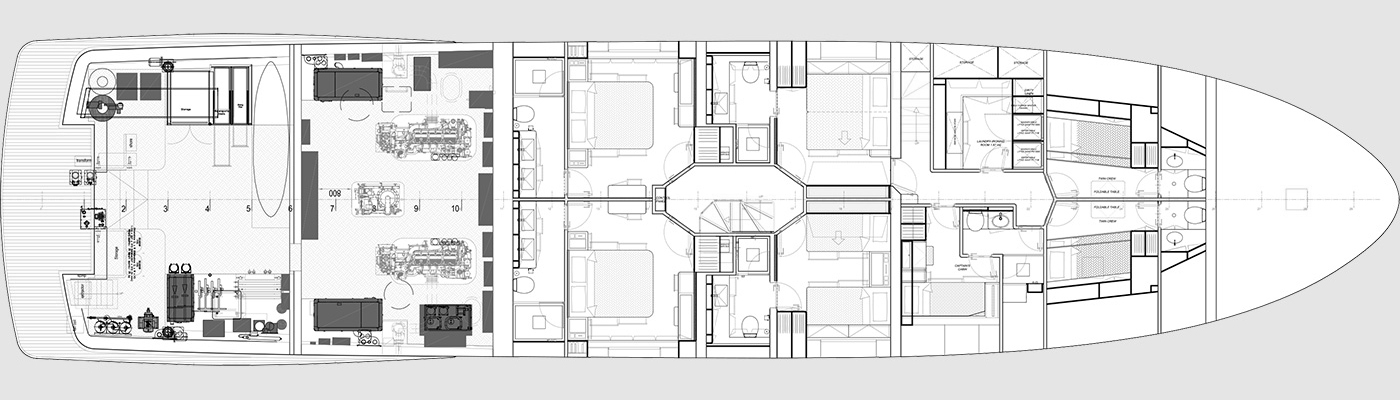

LOWER DECK

ALBUM

  • DOWNLOAD LINK
    M/Y NARVALONauta Air 108'

    Photogallery

    View Album
EXPLORE NAUTA AIR

MORE
INFO

For more information and organize a meeting please contact us.

CONTACT US
Cantiere delle Marche
