THE PERFECT SYNTHESIS OF EFFICIENCY,
SEAWORTHINESS AND SIZE.

While it still maintains a strong “mariner” feel that is typical of working boats, the Darwin Class continually strives to improve the size and layout of the interior spaces so as to reach the perfect blending point between the technical-structural features and the balance of volume and lines.

EXPLORE NOW DOWNLOAD

TECHNICAL
SPECIFICATION

DELIVERY

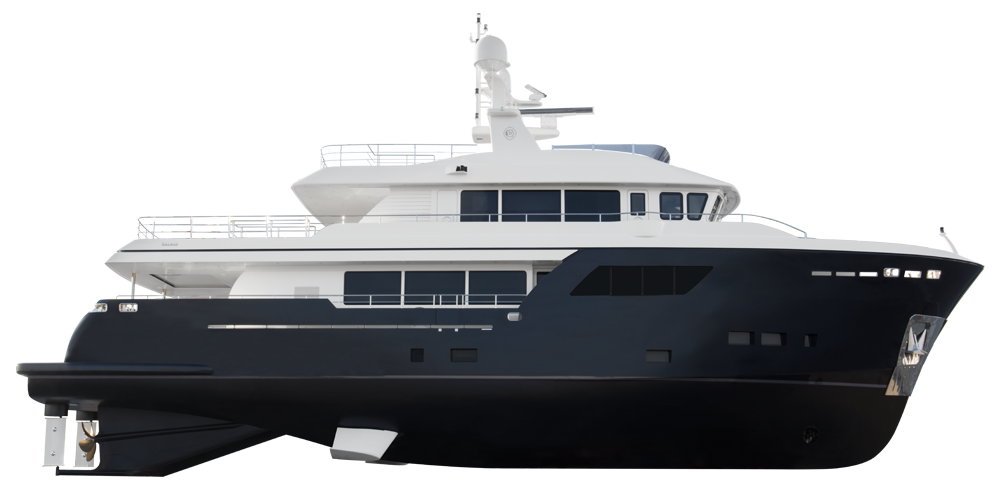

Darwin Class 112' (33,9 X 7,70 MT)
20 months for delivery


DIMENSIONS
Length overall
33,9 mt / 112 ft
Waterline length
32 mt / 105ft @ full load
Max beam
7,70 mt / 25.25 ft
Depth amidship
4,30 mt / 14.10 ft
Draugth at full load
2,60 mt / 8.5 ft
Displacement full load
310 t / 192 long ton
ACCOMODATION
Passengers
10 (+2 Pullman Bed) persons / 5 cabins
CREW
7 / 3 cabins

CAPACITY
Diesel oil
50˙000 lt / 13˙2028 gl
Fresh water
6˙000 lt / 1˙585 gl
Black water
1˙100 lt / 290 gl
Grey water
2˙100 lt / 290 gl
Clean oil
300 lt / 80 gl
Dirty oil
300 lt / 80 gl
BILGE
1˙100 lt / 290 gl
PROPULSION
Engines
2x CATERPILLAR C18 ACERT 2x 500kW (680 CV) @ 1˙800rpm
Gear box
2x ZF W650 free standing
Generator
2x70 kW
Bow thruster
Elettrica 60 kW
stabilizer fins
elettriche, zero speed

PERFORMANCE
Maximum speed
13 knots
Cruise speed
11 knots
Range
5˙000 nm @ 10 knots

...
