TECHNICAL
SPECIFICATION
DELIVERY
Acciaio 105' (32.00 x 7.55 MT)
26 mesi per la consegna
DIMENSIONS
- Length overall
- 32 mt / 105.00 ft
- Waterline length
- 28,90 mt / 94.80 ft
- Max beam
- 7,55 mt / 24.77 ft
- Depth amidship
- 4,00 mt / 13.12 ft
- Draught full load
- 2,30 mt / 7.54 ft
- Displacement full load
- 257 t / 252 long ton
ACCOMODATION
- Passengers
- 10 (+2 Pullman Bed) persons / 5 cabins
- CREW
- 7 / 3 cabins
CAPACITY
- Diesel oil
- 45˙000 lt / 11˙250 gl
- Fresh water
- 8˙000 lt / 2˙115 gl
- Black water
- 1˙100 lt / 260 gl
- Grey water
- 7˙200 lt / 1˙900 gl
- Clean oil
- 280 lt / 74 gl
- Dirty oil
- 280 lt / 74 gl
- BILGE
- 1˙100 lt / 290 gl
PROPULSION
- Engines
- 2x CATERPILLAR C18 500kW @ 1800-2100 Rpm
- Gear box
- 2x ZF W650 i=4:1
- Generator
- 2x55 kW kohler
- Bow thruster
- Elettrica 52 kW
- Stabilizer fins
- elettriche, zero speed
PERFORMANCE
- Maximum speed
- 13 knots
- Cruise speed
- 11 knots
- Range
- 4˙500 nm @ 10 knots

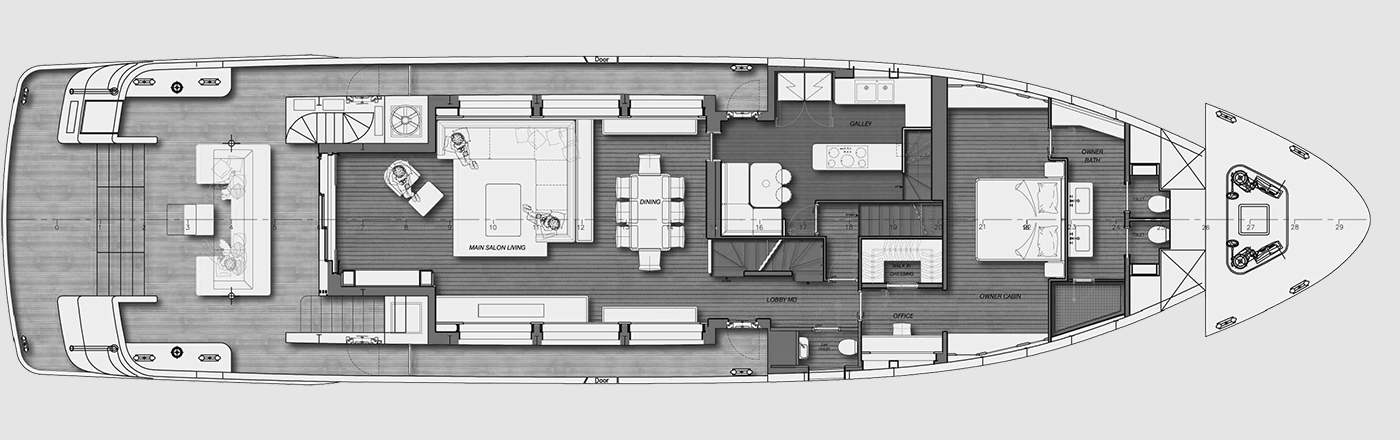

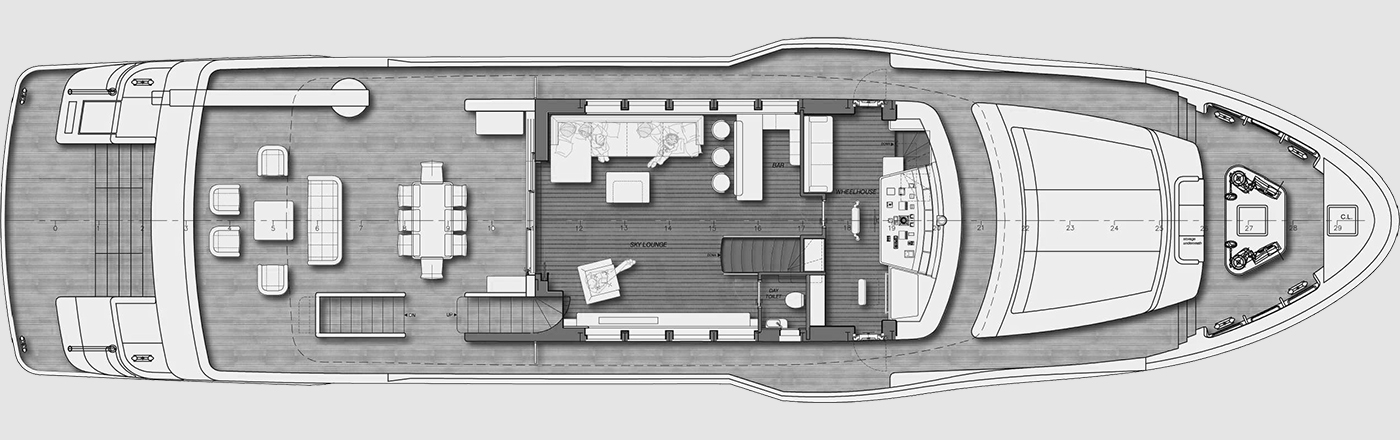

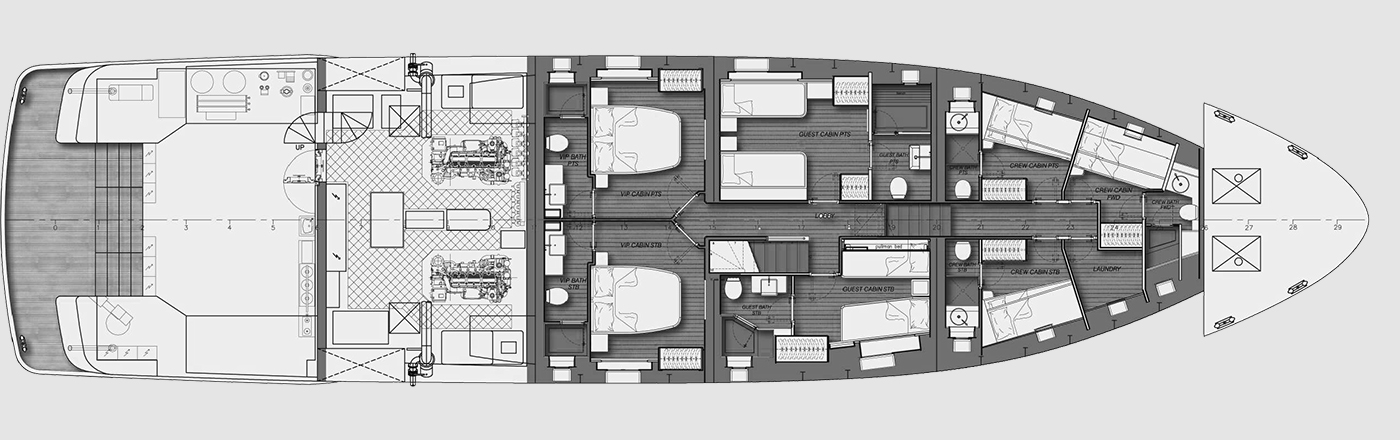

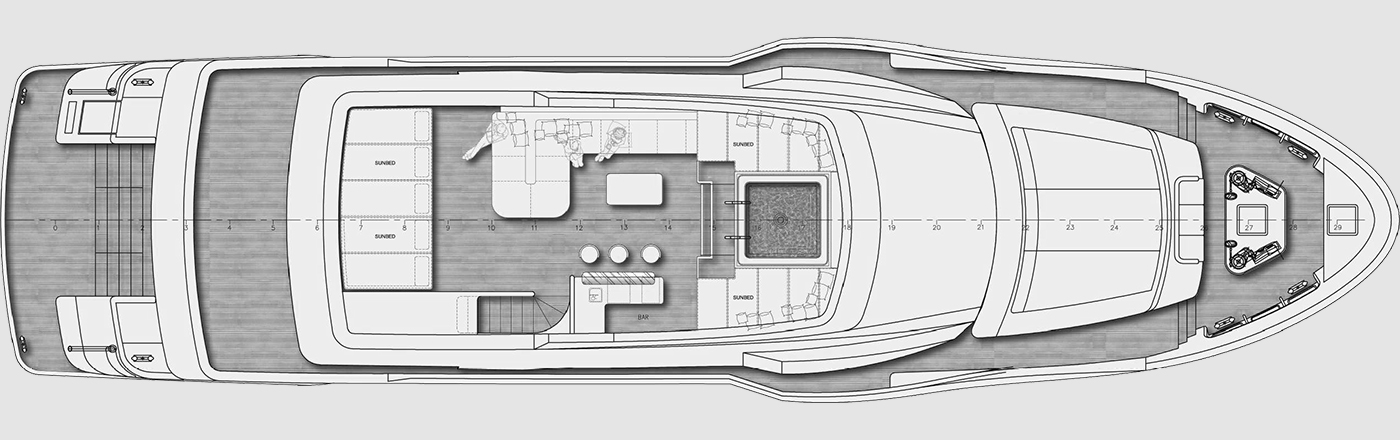

ARRANGEMENT
PLAN





SUN DECK

UPPER DECK

MAIN DECK

LOWER DECK
